Orthographic

The orthographic projection is a perspective azimuthal projection centered around a given latitude and longitude.

Classification

Azimuthal

Available forms

Forward and inverse, spherical projection

Defined area

Global, although only one hemisphere can be seen at a time

Alias

ortho

Domain

2D

Input type

Geodetic coordinates

Output type

Projected coordinates

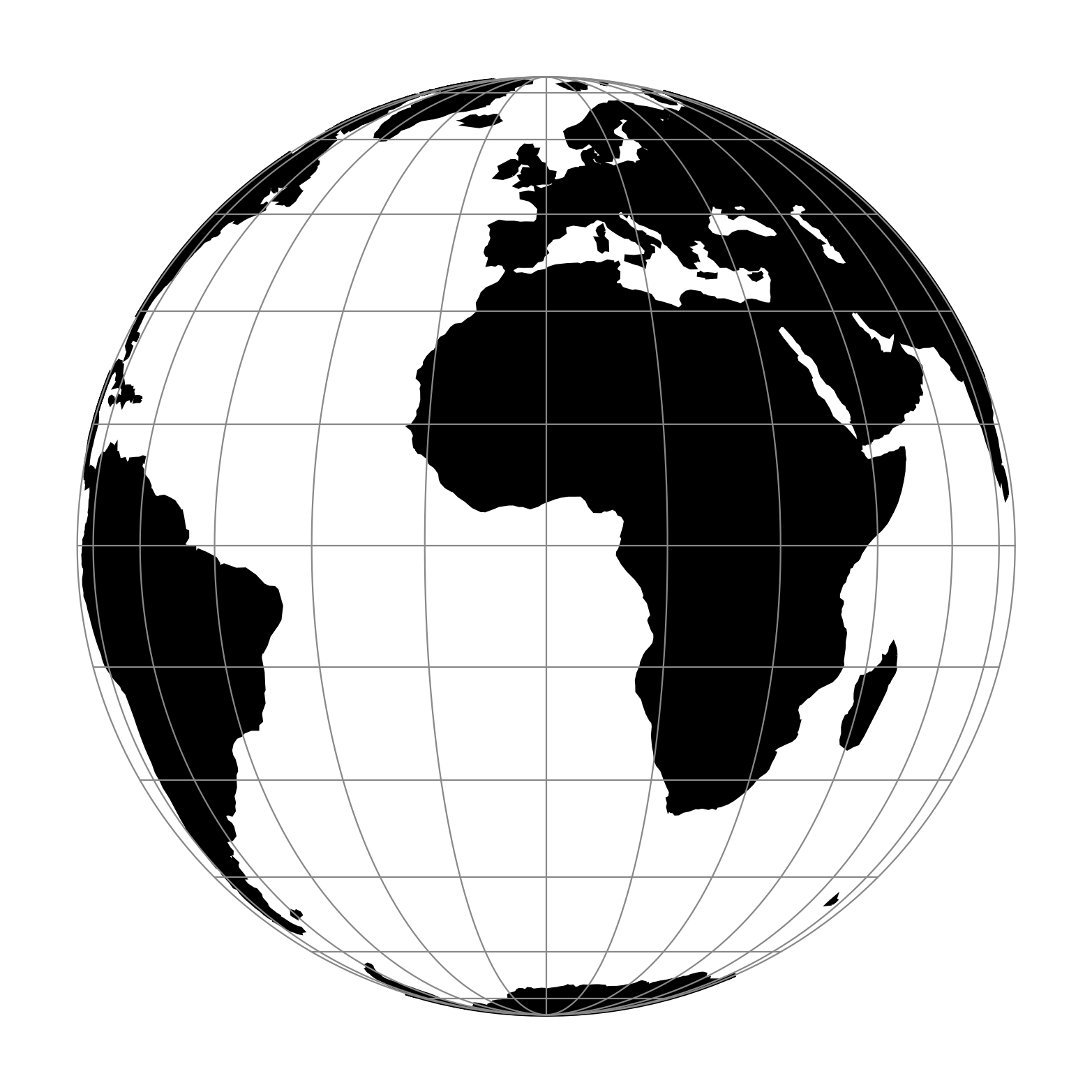

Orthographic

proj-string: +proj=ortho

Parameters

Note

All parameters for the projection are optional.

+lon_0=<value>

Longitude of projection center.

Defaults to 0.0.

+lat_0=<value>

Latitude of projection center.

Defaults to 0.0.

+R=<value>

Radius of the sphere given in meters. If used in conjunction with +ellps +R takes precedence.

+x_0=<value>

False easting.

Defaults to 0.0.

+y_0=<value>

False northing.

Defaults to 0.0.
