Airy¶

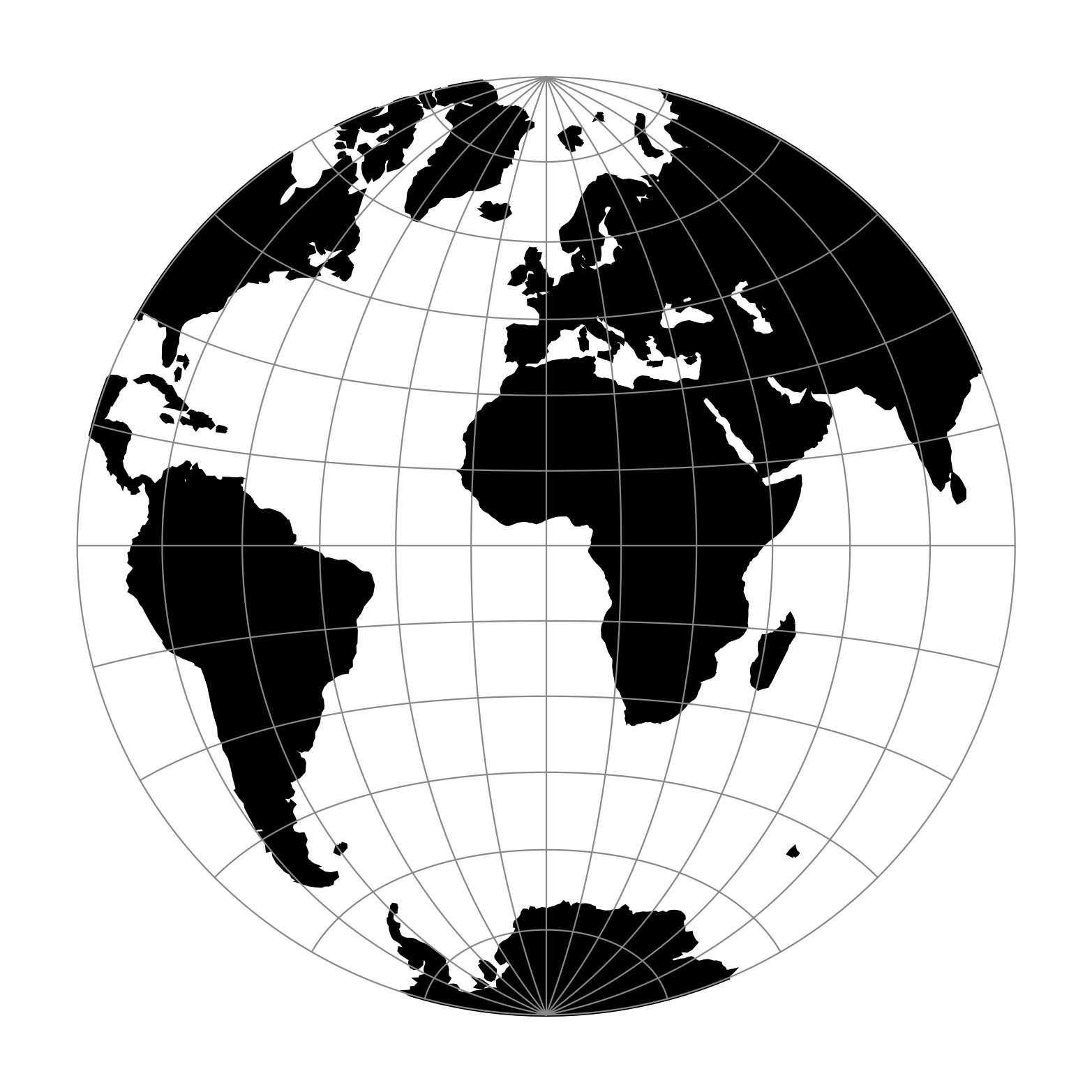

The Airy projection is an azimuthal minimum error projection for the region within the small or great circle defined by an angular distance, \(\phi_b\), from the tangency point of the plane \(( \lambda_0, \phi_0 )\).
Classification |
Azimuthal |
Available forms |
Forward spherical projection |
Defined area |
Global |
Alias |
airy |
Domain |
2D |
Input type |
Geodetic coordinates |
Output type |
Projected coordinates |
proj-string: +proj=airy¶
Options¶
-
+lat_b¶ Angular distance from tangency point of the plane \(( \lambda_0, \phi_0 )\) where the error is kept at minimum.
Defaults to 90° (suitable for hemispherical maps).
-
+no_cut¶ Do not cut at hemisphere limit
-
+lat_0=<value>¶ Latitude of projection center.
Defaults to 0.0.
-
+lon_0=<value>¶ Longitude of projection center.
Defaults to 0.0.
-
+x_0=<value>¶ False easting.
Defaults to 0.0.
-
+y_0=<value>¶ False northing.
Defaults to 0.0.
-
+R=<value>¶ Radius of the sphere given in meters. If used in conjunction with
+ellps+Rtakes precedence.
